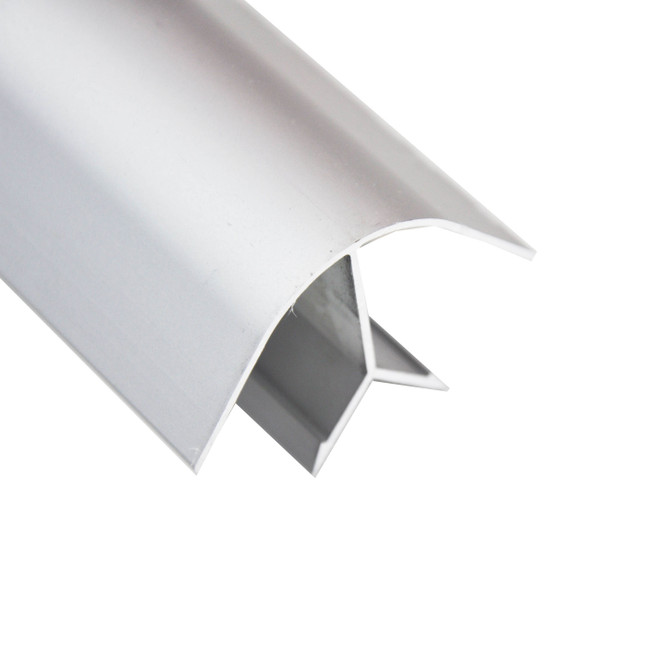

Outside Corner: 1-5/8" Width x 1-5/8" Height x 1/16" Thickness x 1/2" Reveal - Fits 1/2" - 6063-T5 Aluminum

Outside Corner: 1-5/8" Width x 1-5/8" Height x 1/16" Thickness x 1/2" Reveal - Fits 1/2" - 6063-T5 Aluminum Product Information

Outside Corner extrusion is used to finish and protect exterior angles where panels meet, especially in wall paneling systems. It creates a clean edge while helping prevent wear on exposed corners. Commonly used in interior cladding, cabinetry, and architectural millwork.

Highlights

• Corner Edge Protection – Covers and reinforces exterior angles between panels.
• Ideal for Wall Paneling – Frequently used to finish transitions in wall systems and vertical cladding.
• Clean, Finished Look – Delivers a smooth exterior corner without visible fasteners.
• Durable and Easy to Work With – Cuts cleanly and installs easily in custom layouts.
• Used in Interiors and Millwork – Fits cabinetry, built-ins, panel wraps, and trim systems.

Need custom sizes or extrusions? Check out our customization services.

• Width:1-5/8"
• Height:1-5/8"
• Wall Thickness:1/16"
• Panel:1/2"
• Reveal:1/2"
• Alloy & Temper:6063-T5
• Specification Met:ASTM B221-14
• Country of Origin:United States of America
• Yield Strength:16k PSI-1
• Hardness:Brinell 55
• RoHS:RoHS 3 (2017/2102/EU) Compliant
• REACH:REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
• DFARS:Specialty Metals COTS-Exempt
• Materials:See Specification
Aluminium 95.1%
Chromium 0-.1%
Copper 0-0.1%
Iron 0-0.7%
Magnesium 0.45-.90%
Manganese 0-0.10%
Silicon 0.2-0.6%
Titanium 0-0.1%
Zinc 0-0.10%
Other 0.05-0.15%
