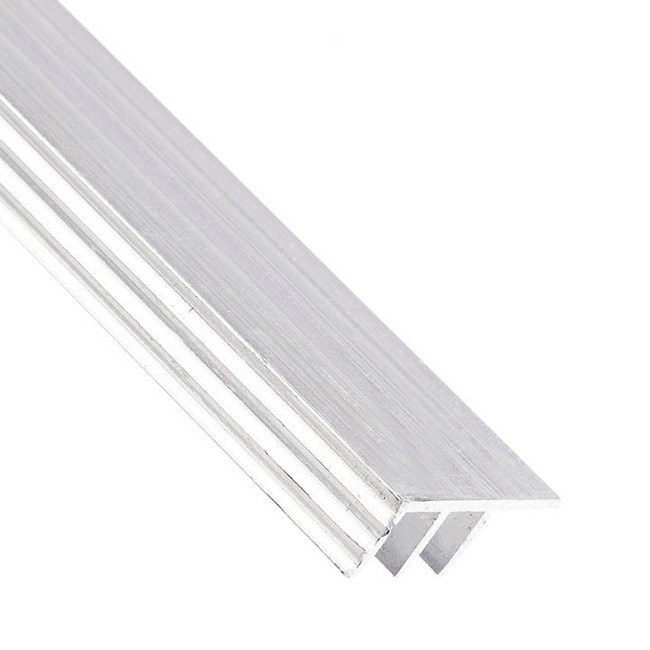

Slide Track - Millwork - Fits 3/16" - 6063-T5 Aluminum Product Information
Millwork Slide Track is designed for smooth, durable sliding functionality with wood or plexiglass cabinet doors. Commonly used in residential, retail, and commercial millwork projects, this track system supports clean bypass operation while keeping the profile minimal. Made from high-strength aluminum, it’s built for consistent performance in interior installations.
Highlights
- Panel-Compatible Design – Accommodates wood or plexiglass doors used in standard cabinetry and millwork.
- Bypass Sliding Function – Allows doors to glide past one another with minimal resistance.
- Aluminum Track Construction – Provides long-term durability with corrosion-resistant performance.
- Smooth Operation – Engineered for quiet and consistent movement across applications.
- Used in Millwork and Cabinetry – Ideal for sliding doors in kitchens, closets, storage cases, and retail displays.
Need custom sizes or extrusions? Check out our customization services.
- Width:7/8"
- Height:3/4"
- Wall Thickness:1/16"
- Panel:3/16"
- Country of Origin:United States of America
- Alloy & Temper:6063-T5
- Specification Met:ASTM B221-14
- Yield Strength:16k PSI-1
- Hardness:Brinell 55
- RoHS:RoHS 3 (2017/2102/EU) Compliant
- REACH:REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
- DFARS:Specialty Metals COTS-Exempt
- Materials:See Specification
- Aluminium 95.1%
- Chromium 0-.1%
- Copper 0-0.1%
- Iron 0-0.7%
- Magnesium 0.45-.90%
- Manganese 0-0.10%
- Silicon 0.2-0.6%
- Titanium 0-0.1%
- Zinc 0-0.10%
- Other 0.05-0.15%
