Hanging door tracks carry sliding doors from above, so closets, room dividers, and office partitions open without a floor track. Choose a single or double track with ball-bearing apron hangers, or a closed track with a four-wheel top plate for sliding or bifold panels. Every track is 6063-T5 aluminum made in the USA, fits 3/4" doors, and cuts to length on site.
Choose a Track System
Single & Double TracksTop-hung track with ball-bearing apron hangers.One door or a bypass pair. Hangers are rated for doors up to 100 lb and adjust for height.Shop Single & Double Tracks
Closed TrackEnclosed track with a four-wheel top plate.One run of sliding or bifold panels. The top plate rides out of sight inside the track.Shop Closed Track
Not sure which fits? Compare the tracks.
Free ShippingOn qualifying US orders of $250 or more. Some exclusions apply. Learn More.
Volume PricingSave money when you buy more. We offer competitive market pricing. Learn More.
Price MatchingShop with confidence with our 15-day price match guarantee. Learn More.
Single & Double Door Tracks
Top-hung tracks for one sliding door or a bypass pair, carried on ball-bearing apron hangers.
How a Single or Double Track Goes Together

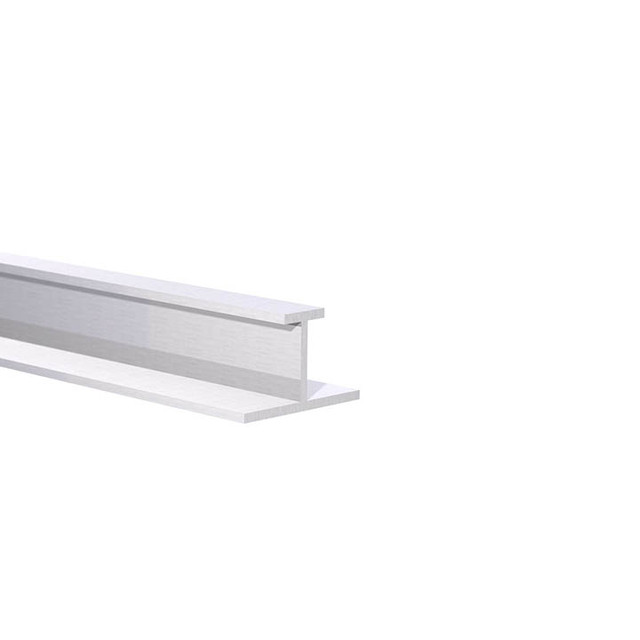

Single Door Track
Top-hung track for one sliding door. Mounts to the header or ceiling.
| Width | 1-9/16" |
|---|---|
| Height | 25/32" |
| Wall | 3/32" |
| Door Thickness | 3/4" |
| Hanger | Single Apron |
| Lengths | 48", 96", or 144" |
| Finish | Mill |
| Pre-DrilledDTS63 · Mounting Holes | View OptionsOptions |
| No HolesDTS63 · Drill on Site | View OptionsOptions |
Double Door Track
Two runs in one track for a pair of bypass doors that slide past each other.
| Width | 1-9/16" |
|---|---|
| Height | 15/16" |
| Wall | 3/32" |
| Door Thickness | 3/4" |
| Hanger | Single Apron |
| Lengths | 48", 96", or 144" |
| Finish | Mill |
| Pre-DrilledDTD63 · Mounting Holes | View OptionsOptions |
| No HolesDTD63 · Drill on Site | View OptionsOptions |
Single Apron Hanger
Ball-bearing hanger and door bracket. A threaded post sets the door height.
| Rating | Doors up to 100 lb |
|---|---|
| Wheels | Ball Bearing |
| Height Adjust | +/- 1/8" |
| Door Thickness | 3/4" Min. |
| Fits | DTS63, DTD63 |
| HangerDTA-SA | View OptionsOptions |
Closed Door Track
An enclosed single track with a four-wheel top plate for sliding or bifold panels.
How the Closed Track Goes Together
Closed Door Track
Enclosed single track that hides the top plate. Mounts to the header or ceiling.
| Width | 1-13/32" |
|---|---|
| Height | 13/16" |
| Wall | 1/16" |
| Door Thickness | 3/4" |
| Hanger | Closed Top Plate |
| Lengths | 48", 96", or 144" |
| Finish | Mill |
| Pre-DrilledDTC63 · Mounting Holes | View OptionsOptions |
| No HolesDTC63 · Drill on Site | View OptionsOptions |
Closed Top Plate
Four-wheel plate that mounts to the top of each panel and rides in the closed track.
| Wheels | 4 Steel Ball Bearing |
|---|---|
| Bifold Rating | 50 lb per Panel |
| Multi-Fold Rating | 30 lb per Panel |
| Door Thickness | 3/4" |
| Fits | DTC63 |
| Top PlateDTA-CTP | View OptionsOptions |
Custom Lengths and Profiles
Need a longer run, a specialty finish, or a different track profile? We offer custom lengths, specialty finishes, and made-to-order aluminum profiles.
Request a QuoteCompare Hanging Door Tracks
All three tracks hang the door from above, so there is no floor track. They differ in how many doors they carry and which hanger rides inside.
| Single Door Track | Double Door Track | Closed Door Track | |
|---|---|---|---|
| Doors | One | Two, Bypass | One Run of Panels |
| Hanger | Single Apron (DTA-SA) | Single Apron (DTA-SA) | Closed Top Plate (DTA-CTP) |
| Hanger Rating | Doors up to 100 lb | Doors up to 100 lb | Bifold 50 lb, Multi-Fold 30 lb per Panel |
| Door Thickness | 3/4" | 3/4" | 3/4" |
| Track Size | 1-9/16" W x 25/32" H | 1-9/16" W x 15/16" H | 1-13/32" W x 13/16" H |
| Mounting | Pre-Drilled or No Holes | Pre-Drilled or No Holes | Pre-Drilled or No Holes |
| Lengths | 48", 96", or 144" | 48", 96", or 144" | 48", 96", or 144" |
| Finish | Mill | Mill | Mill |
Top-Hung Aluminum Sliding Door Tracks
Orange Aluminum’s hanging door tracks are extruded from 6063-T5 aluminum to ASTM B221 in the USA for closet doors, room dividers, office partitions, and other interior sliding doors. The Single and Double Door Tracks carry one door or a bypass pair on adjustable apron hangers. The Closed Door Track encloses a four-wheel top plate for sliding and bifold panels. Each track ships in 48", 96", or 144" lengths, pre-drilled or with no holes.
Hanging Door Track FAQ
Choosing a Track
What is a hanging door track?
A hanging door track mounts overhead to the header or ceiling, and the door hangs from rollers that ride inside it. Because the door is carried from above, there is no floor track to trip on or clean, which suits closets, room dividers, and office partitions.
Which hanging door track do I need?
Count the doors. For one sliding door, use the Single Door Track. For two bypass doors that slide past each other, use the Double Door Track. For an enclosed track that hides the hardware, or for bifold panels, use the Closed Door Track with the Closed Top Plate.
Is a hanging door track the same as a barn door track?
No. Barn door hardware mounts on the face of the wall with exposed rollers above the door. A hanging door track mounts overhead to the header or ceiling, and the hangers ride inside the track.
Can I use these tracks for bifold doors?
Yes, with the Closed Door Track and the Closed Top Plate. The top plate is rated for bifold doors up to 50 lb per panel and multi-fold doors up to 30 lb per panel, with up to six panels folding one way. Hinges and pivot hardware are not included.
Hangers and Installation
Which hanger goes with each track?
The Single Apron Hanger (DTA-SA) fits the Single Door Track and the Double Door Track. The Closed Top Plate (DTA-CTP) fits the Closed Door Track.
How much weight can the hangers carry?
The Single Apron Hanger is rated for doors up to 100 lb. The Closed Top Plate is rated for bifold doors up to 50 lb per panel and multi-fold doors up to 30 lb per panel.
What thickness door do the tracks fit?
All three tracks are sized for 3/4" doors and panels.
Can I adjust the door height after it is hung?
Yes, on the Single Apron Hanger. Its threaded post raises or lowers the door about 1/8" in either direction, and a lock nut holds the setting.
Should I order pre-drilled track or track with no holes?
Pre-drilled track comes with mounting holes, so it is ready to fasten up. Track with no holes lets you drill where your header or ceiling framing is.
Cutting and Ordering
Can I cut a hanging door track to length?
Yes. Cut with a miter saw and a carbide-tipped blade rated for non-ferrous metal, then deburr the cut edge. Wear eye protection.
What lengths and finishes are available?
Each track comes in 48", 96", and 144" lengths in a mill finish, pre-drilled or with no holes.
Is there volume pricing?
Yes. Save money when you buy more. We offer competitive market pricing, and the price breaks for each length are shown when you open View Options. Learn more about volume pricing.
Can I get custom track lengths or finishes?
Yes. We offer custom lengths, specialty finishes, and made-to-order aluminum profiles. Contact us to start a request.
