Aluminum hanging file rails turn any drawer, desk, or cabinet into a hanging file drawer. Mount a press cap or mount angle on two opposite panels, clip on flat bar rails, and set them for letter or legal hanging folders, facing front or to the side. The rails fit standard hanging file folders, including Pendaflex® folders. Every part is cut-to-fit 6063-T5 aluminum.
How the System Goes Together
Free ShippingOn qualifying US orders of $250 or more. Some exclusions apply. Learn More.
Volume PricingSave money when you buy more. We offer competitive market pricing. Learn More.
Price MatchingShop with confidence with our 15-day price match guarantee. Learn More.
Mounting & Clips
Mount a press cap or mount angle on two opposite drawer panels, then clip a rail end onto each side.

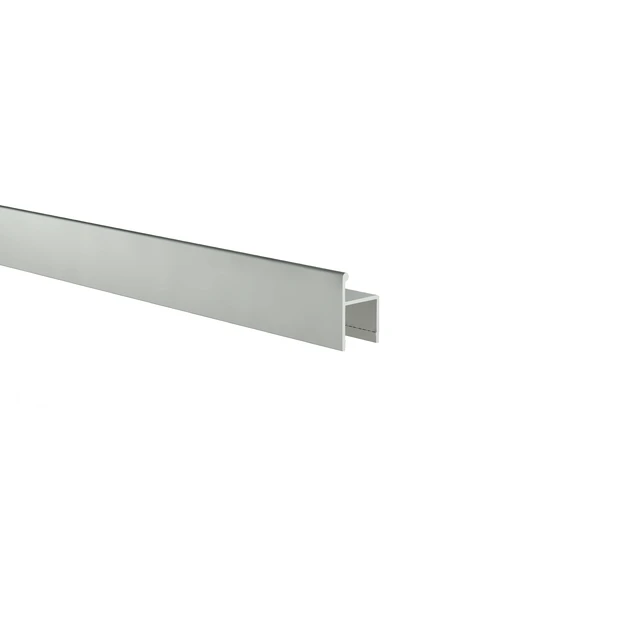

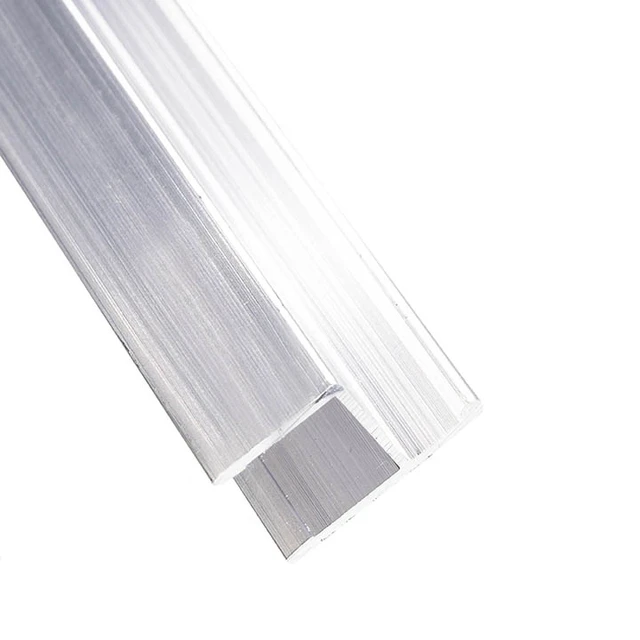

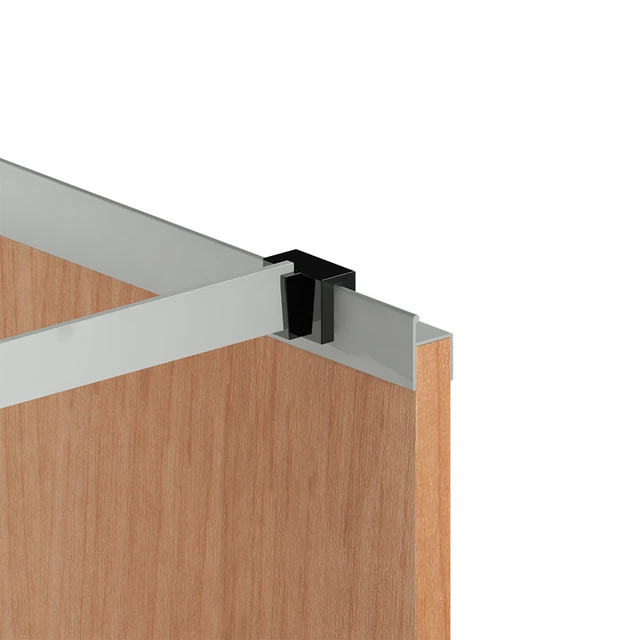

File Rail Press Cap
Presses onto the top edge of a 1/2" drawer or cabinet panel. No drilling.
| Fits | 1/2" Panel |
|---|---|
| Lengths | 48", 96", or 144" |
| Finish | Mill or Clear Anodized |
| Top-Edge MountFRPF63 | View OptionsOptions |

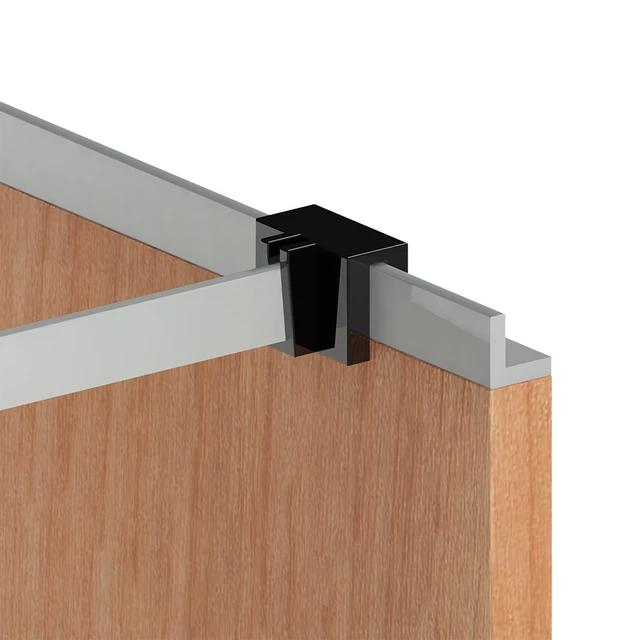

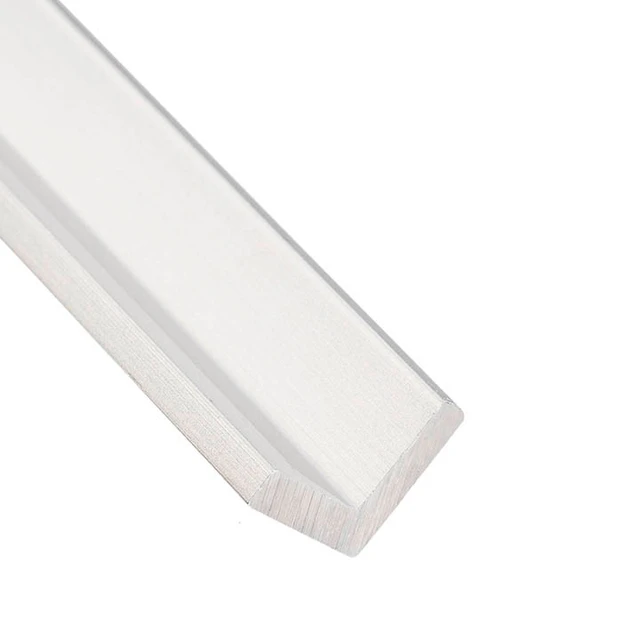

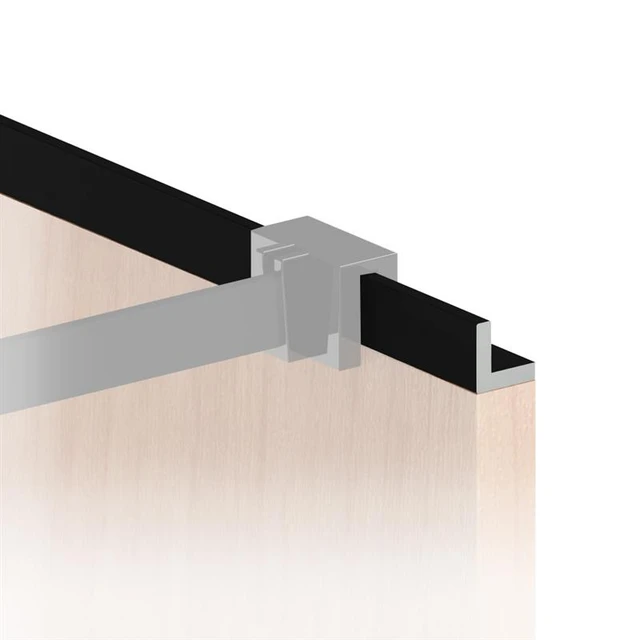

File Rail Mount Angle
Screws to the inside face of a drawer or cabinet panel.

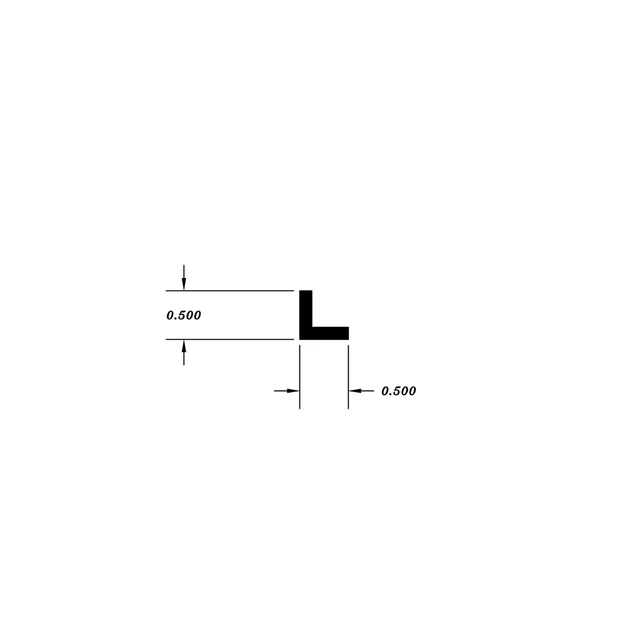

| Size | 1/2" x 1/2" x 1/8" |
|---|---|
| Lengths | 72", 96", or 144" |
| Finish | Mill, Clear, or Black Anodized |
| Inside-Face MountFRA630500125 | View OptionsOptions |

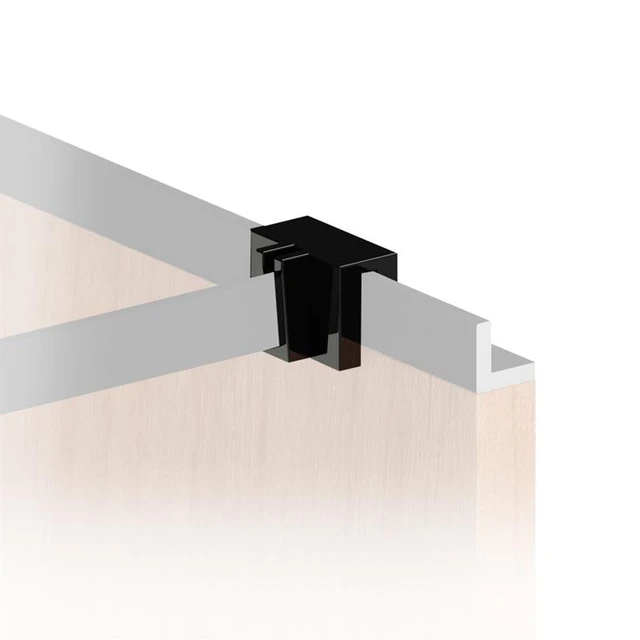

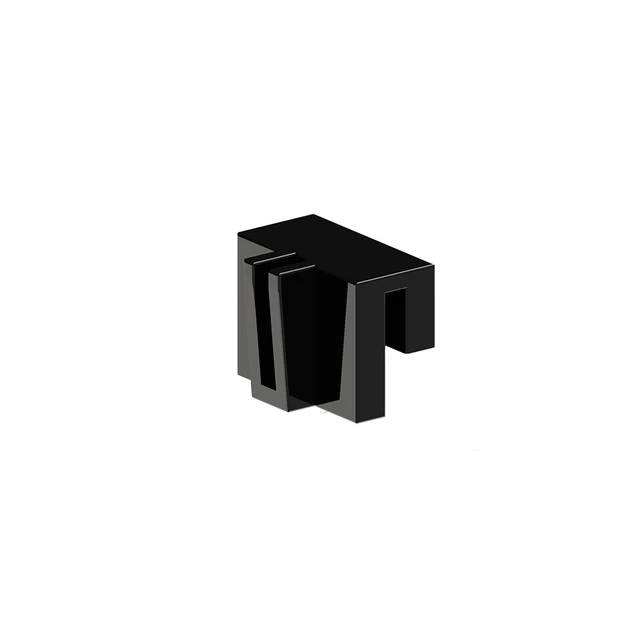

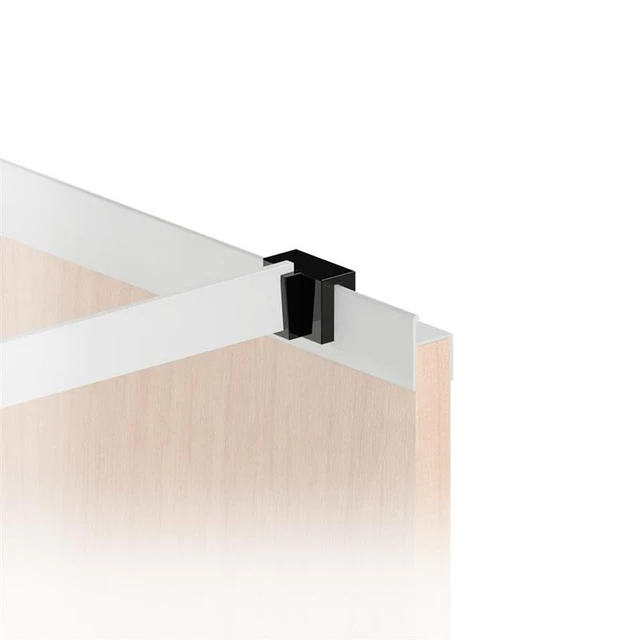

File Rail Clip
Clips onto the press cap or mount angle and holds the end of each rail.
| Fits | 1/2" and 3/4" Rails |
|---|---|
| Material | Black PVC |
| Pack | 10 Clips |
| Rail ClipsFRC-BLK | View OptionsOptions |
Flat Bar Rails
Flat bars that span the drawer. Cut them to the inside width or depth of the drawer.
1/2" File Rail Flat Bar
The rail hanging folders ride on. Folders hook over two parallel rails.
| Size | 1/2" x 1/8" |
|---|---|
| Lengths | 72", 96", or 144" |
| Finish | Mill, Clear, or Black Anodized |
| 1/2" RailFRFB6301250500 | View OptionsOptions |

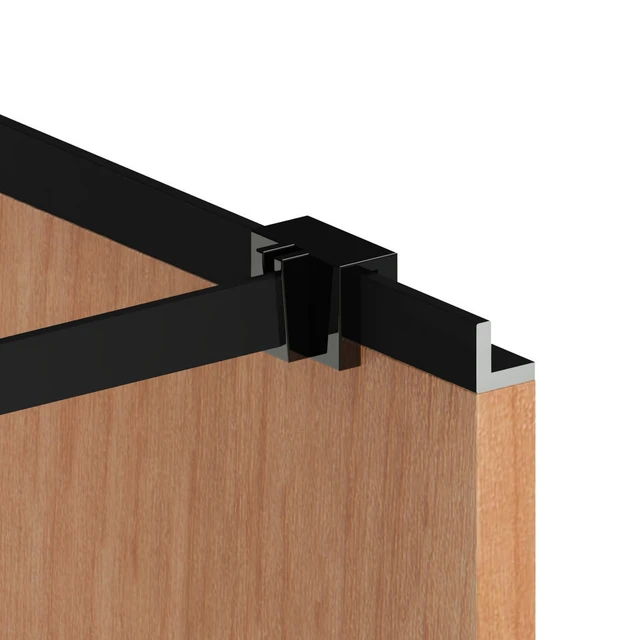

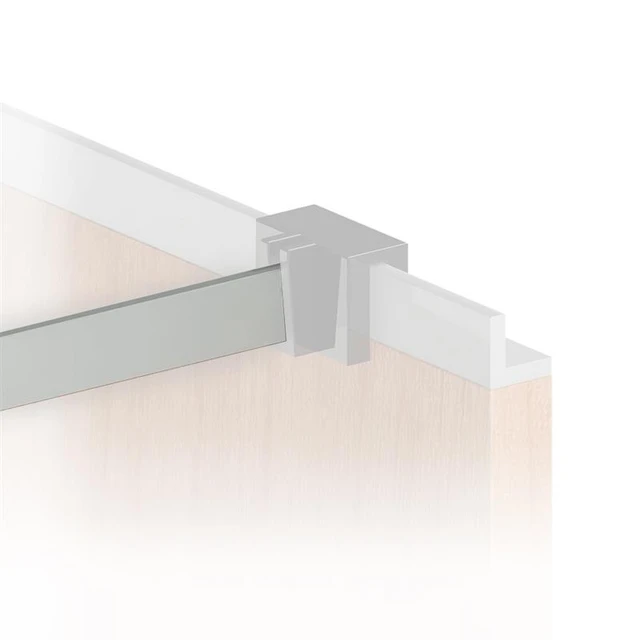

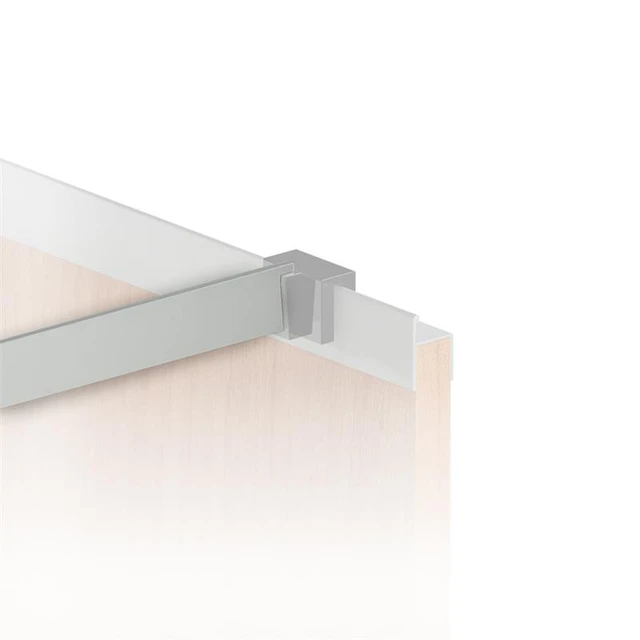

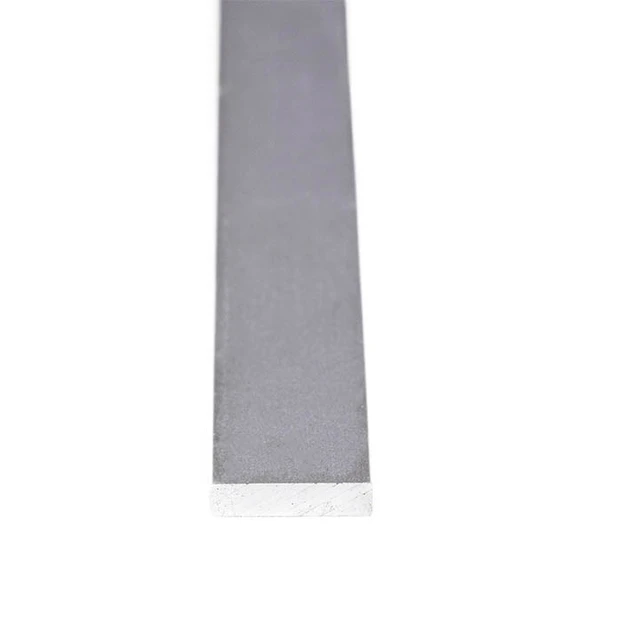

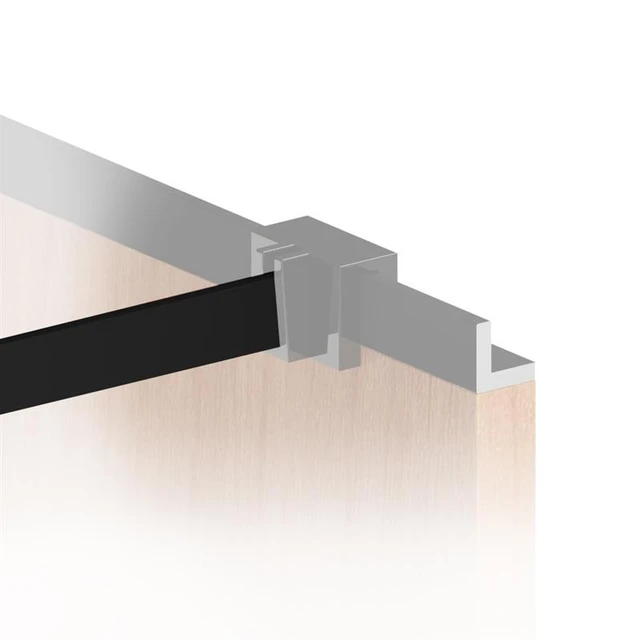

3/4" File Rail Flat Bar
The same rail in a taller 3/4" height.
| Size | 3/4" x 1/8" |
|---|---|
| Lengths | 96" or 144" |
| Finish | Mill, Clear, or Black Anodized |
| 3/4" RailFRFB6301250750 | View OptionsOptions |
Custom File Systems
Build to Your Drawer
Custom sizes, layouts, and made-to-order components for desks, cabinets, and workstations.
Contact UsPossible File Drawer Configurations
Top view, drawer front at the bottom. Orange lines are hanging folders.
File Drawers
LetterFiles face front Letter + LetterFront-facing + side-facing Letter + LegalFront-facing + side-facing LegalFiles face front Legal + LetterFront-facing + side-facing Legal + LegalFront-facing + side-facing
Lateral File Drawers
Lateral: LetterFiles face the side Lateral: Letter + LegalFront-facing on each side, side-facing legal between
Mixed Layouts: add clips to set rails in both directions in one drawer.
Aluminum File Rails for File Cabinets, Desks, and Drawers
Orange Aluminum’s file hanging rail system holds standard hanging file folders, such as Pendaflex®, in filing drawers, desks, workstations, and custom cabinetry. Mix the parts to match your drawer size and filing setup.
Parts at a Glance
| Part | SKU | Size | Finishes |
|---|---|---|---|
| 1/2" File Rail Flat Bar | FRFB6301250500 | 1/2" x 1/8" | Mill, Clear, or Black Anodized |
| 3/4" File Rail Flat Bar | FRFB6301250750 | 3/4" x 1/8" | Mill, Clear, or Black Anodized |
| File Rail Mount Angle | FRA630500125 | 1/2" x 1/2" x 1/8" | Mill, Clear, or Black Anodized |
| File Rail Press Cap | FRPF63 | Fits 1/2" Panel | Mill or Clear Anodized |
| File Rail Clip | FRC-BLK | Fits 1/2" and 3/4" Rails | Black PVC, 10-Pack |
Hanging File Rail FAQ
Choosing Parts
Do these rails work with Pendaflex hanging folders?
Yes. The rails fit standard letter and legal hanging file folders, including Pendaflex folders. Each folder hooks over two parallel rails.
What are hanging file rails?
Hanging file rails are the bars that hanging folders hook over inside a drawer. Each folder rests on two parallel rails and slides along them.
What parts do I need for a hanging file drawer?
Three parts: a mount on two opposite drawer panels (the File Rail Press Cap or File Rail Mount Angle), File Rail Clips, and File Rail Flat Bars. The clips sit on the mount and hold each rail end.
Should I use the press cap or the mount angle?
The press cap presses onto the top edge of a 1/2" drawer or cabinet panel with no drilling. The mount angle screws to the inside face of the panel instead.
Do these rails work in wood drawers and desks?
Yes. The system is made for desks, custom cabinetry, and storage drawers, including wood drawers.
Drawer Layouts
What is the difference between letter and legal hanging files?
Letter folders hold 8-1/2" x 11" paper and legal folders hold 8-1/2" x 14", so legal folders are wider and need the rails set farther apart.
Can one drawer hold both letter and legal files?
Yes. Add clips to set rails in both directions, with one section of front-facing files and one of side-facing files. The layouts above show common combinations.
What does front-to-back filing mean?
Front-to-back rails run from the front of the drawer to the back, so folders face the front. Side-to-side rails run across the drawer, so folders face the side.
Do these rails work in lateral file drawers?
Yes. Lateral drawers usually hold letter files facing the side, or a mix of letter and legal sections.
Cutting, Finishes, and Ordering
How do you cut aluminum file rails?
Use a miter saw with a carbide-tipped blade rated for non-ferrous metal, cut slowly, and deburr the cut edge. Wear eye protection.
What lengths are available?
The 1/2" rail and the mount angle come in 72", 96", and 144". The 3/4" rail comes in 96" and 144". The press cap comes in 48", 96", and 144". Clips come 10 per pack.
What finishes are available?
Rails and the mount angle come in mill finish, clear anodized, or black anodized. The press cap comes in mill finish or clear anodized. Clips are black.
Is there volume pricing?
Yes. Save money when you buy more. We offer competitive market pricing, and the price breaks for each length and finish are shown when you open View Options. Learn more about volume pricing.
Do you offer free shipping?
Yes. Qualifying US orders of $250 or more ship free. Some exclusions apply. See free shipping details.
Do you price match?
Yes. Find a lower price on a comparable aluminum product within 15 days of purchase and, if it meets our price match policy, we credit you the difference. See price matching details.
Can I get custom sizes or a made-to-order file system?
Yes. We offer custom sizes, layouts, and made-to-order components. Contact us to start a request.
