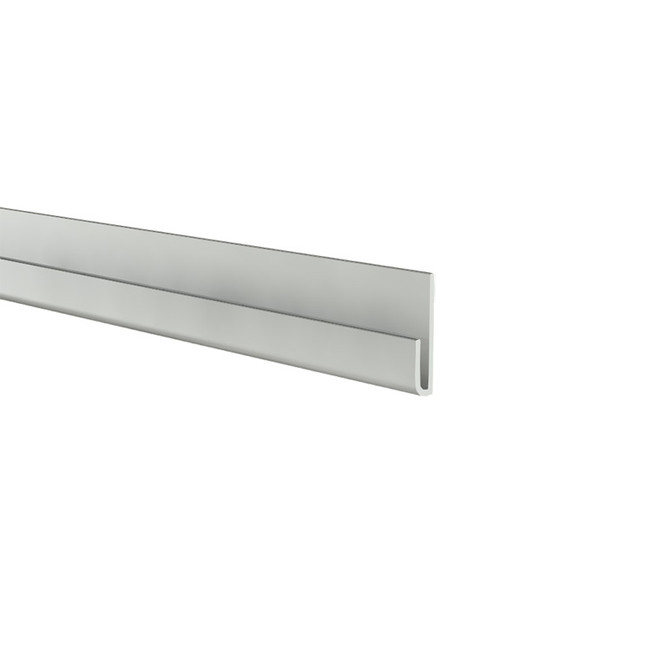

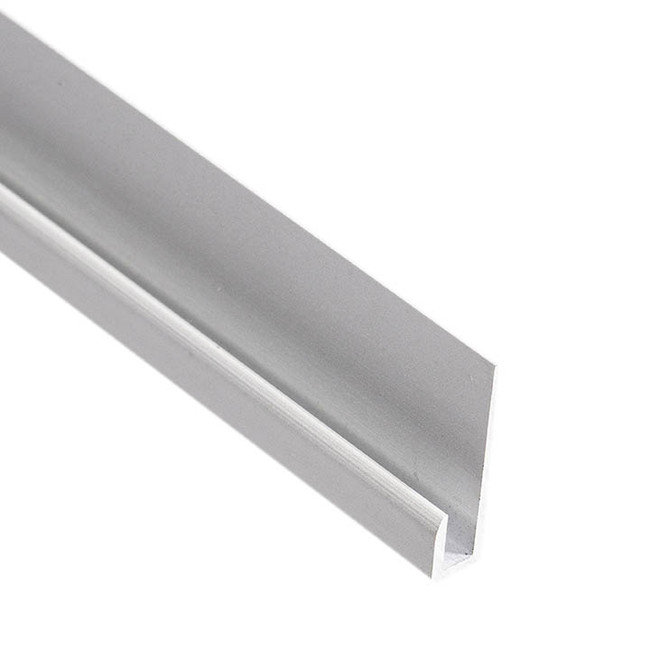

Aluminum J Cap Edge Trim – Laminate – 1/2" Reveal – Fits 3/32" – 1" x 1/16" – 6063-T5

Sku:

ETJ6300940500-72CA

SKU:

ETJ6300940500-72CA

Reveal:

1/2"

Fit:

3/32"

Height:

Width:

7/32"

Wall Thickness:

1/16"

Alloy & Temper:

6063-T5

Extrusion Manufacturing Compliance:

ASTM B221-14

RoHS Compliance Standards:

RoHS 3 (2017/2102/EU) Compliant

DFARS Compliance Standards:

Specialty Metals COTS-Exempt

Hardness - Brinell:

60 BHN

Hardness - Rockwell (Scale E):

Hardness - Webster:

≥ 7

Country of Origin:

United States of America

materials:

Aluminium 95.1%

materials:

Chromium 0-.1%

materials:

Copper 0-0.1%

materials:

Iron 0-0.7%

materials:

Magnesium 0.45-.90%

materials:

Manganese 0-0.10%

materials:

Silicon 0.2-0.6%

materials:

Titanium 0-0.1%

materials:

Zinc 0-0.10%

materials:

Other 0.05-0.15%

logo:


logo:


logo:


logo:


logo:


_finish:

Clear Anodized,Black Anodized

Aluminum J Cap Edge Trim – Laminate – 1/2" Reveal – Fits 3/32" – 1" x 1/16" – 6063-T5 Product Information

Aluminum Laminate J Cap Edge Trim is designed to finish and protect exposed edges of laminate panels and other compatible sheet materials. Also known as Laminate J Molding or Aluminum Laminate Edge Trim, this J-shaped extrusion features a channel opening sized to accommodate laminate panel inserts while providing a clean, finished appearance.

Manufactured from 6063-T5 aluminum, the profile offers a durable finishing solution for cabinetry, countertops, decorative panels, displays, and architectural interiors. Its longer face provides visible edge coverage, while the shorter return leg helps create a defined perimeter around the inserted material.

Although designed for laminate applications, the profile can also accommodate other compatible panel and sheet materials within its specified dimensional range.

Key Features:

Channel opening designed for laminate panel inserts.
Covers and finishes exposed material edges.
Suitable for cabinetry, countertops, displays, and decorative panels.
Compatible with other appropriately sized sheet materials.
Manufactured from 6063-T5 aluminum.

Reveal:1/2"

Fit:3/32"

Height:1"

Width:7/32"

Wall Thickness:1/16"

Alloy & Temper:6063-T5

Extrusion Manufacturing Compliance:ASTM B221-14

RoHS Compliance Standards:RoHS 3 (2017/2102/EU) Compliant

DFARS Compliance Standards:Specialty Metals COTS-Exempt

Hardness - Brinell:60 BHN

Hardness - Rockwell (Scale E):67

Hardness - Webster:≥ 7

Country of Origin:United States of America

Materials:See Specification

Aluminium 95.1%

Chromium 0-.1%

Copper 0-0.1%

Iron 0-0.7%

Magnesium 0.45-.90%

Manganese 0-0.10%

Silicon 0.2-0.6%

Titanium 0-0.1%

Zinc 0-0.10%

Other 0.05-0.15%

Elwood Menear

Verified Buyer

J Cap Trim

Nice quality, great finish and durability. No fault of your company, but I ordered the larger version, rather than the size I needed. I was able to modify the part and it works well
