Z-Bar Hanger

Sku:
ZC639548-72MH
Alloy & Temper:
6063-T5
Specification Met:
ASTM B221-14
Made in:
America
Yield Strength:
16k PSI-1
Hardness:
Brinell 55
RoHS:
RoHS 3 (2017/2102/EU) Compliant
REACH:
REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
DFARS:
Specialty Metals COTS-Exempt
materials:
Aluminium 95.1%
logo:
logo:
logo:
logo:
logo:
rightbanner:
leftbanner:
materials:
Chromium 0-.1%
materials:
Copper 0-0.1%
materials:
Iron 0-0.7%
materials:
Magnesium 0.45-.90%
materials:
Manganese 0-0.10%
materials:
Silicon 0.2-0.6%
materials:
Titanium 0-0.1%
materials:
Zinc 0-0.10%
materials:
Other 0.05-0.15%
_offset:
7/32"
_drop:
45/64"
_lbft:
0.114
/ZC639548/:
OA9548
_perimeter:
2.57
_legacy_sku:
OA6948
Volume Discount
  • 1 - 58 $8.34
  • 59 - 88 $7.92
  • 89 - 118 $7.67
  • 119 - 178 $7.42
  • 179 - 238 $6.84
  • 239 + Contact Us
15-day Price Guarantee 15 Day Price Guarantee
Price/Piece:
$8.34

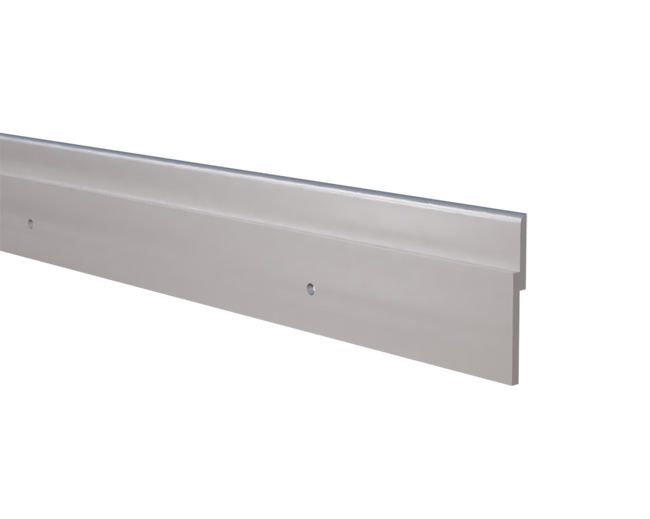

Z-Bar Hanger Product Information

A Z-Bar Hanger is an ideal choice for mirrors and picture frames. This style is lighter than our other panel rails and clips providing less strength but greater savings. The two sections wedge together to securely lock the panels in place, making it ideal for hanging wall panels, partitions and signs.

Lift-off clearance of 45/64" (.704") is required for installation and removal of this Z-Bar Hanging System. Overall height when mounted is 1-3/4". Also available in custom lengths with hole configurations.

  • 7/32" offset x 45/64" drop (.225" x .704")
  • Hanger z-bar comes in 6 and 12 foot cut lengths
  • Mill finish, per American Society for Testing and Materials (ASTM)
  • 6063 Ultra-corrosion resistant architectural grade alloy, T5 temper
  • Punched holes 1" on center to accommodate #8 screws
  • Alloy & Temper:6063-T5
  • Specification Met:ASTM B221-14
  • Made in:America
  • Yield Strength:16k PSI-1
  • Hardness:Brinell 55
  • RoHS:RoHS 3 (2017/2102/EU) Compliant
  • REACH:REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
  • DFARS:Specialty Metals COTS-Exempt
  • /ZC639548/:OA9548
  • Materials:See Specification
  • Aluminium 95.1%
  • Chromium 0-.1%
  • Copper 0-0.1%
  • Iron 0-0.7%
  • Magnesium 0.45-.90%
  • Manganese 0-0.10%
  • Silicon 0.2-0.6%
  • Titanium 0-0.1%
  • Zinc 0-0.10%
  • Other 0.05-0.15%
